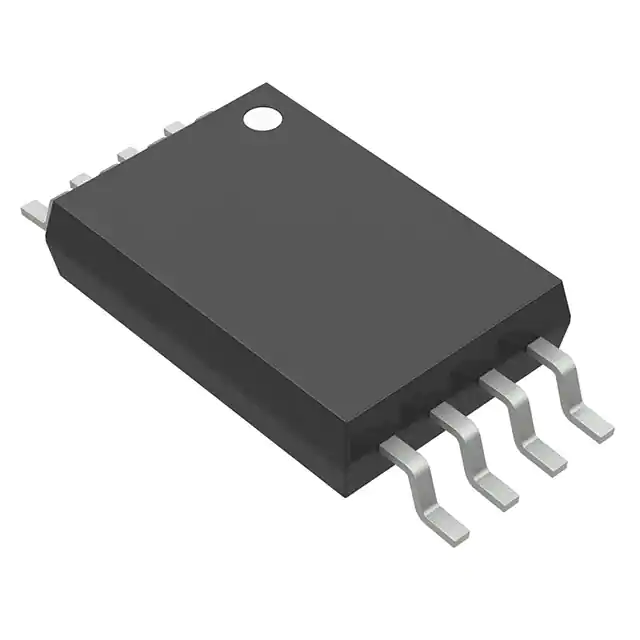

| Part Number | UCC2801PW | UCC2806PW | UCC2805PW | UCC2803PW | UCC2800PW |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive, Isolation Capable | Positive | Positive | Positive |
| Topology | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter |
| Number of Outputs | 1 | 2 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.4V ~ 12V | 8V ~ 14.5V | 3.6V ~ 12V | 3.6V ~ 12V | 6.9V ~ 12V |
| Frequency - Switching | 46kHz | 47kHz | 31kHz | 31kHz | 46kHz |
| Duty Cycle (Max) | 49% | 50% | 49% | 99% | 99% |
| Synchronous Rectifier | No | Yes | No | No | No |
| Clock Sync | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Frequency Control | Current Limit, Enable, Frequency Control | Frequency Control | Frequency Control | Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP | 16-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP |
