| Part Number | UCC27528DSDT | UCC27523DSDT | UCC27524DSDT | UCC27525DSDT | UCC27526DSDT | UCC27527DSDT | UCC27528DSDR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - | 1V, 2.3V | 1V, 2.3V | 1V, 2.3V | 1V, 2.3V | - | - |
| Current - Peak Output (Source, Sink) | 5A, 5A | 5A, 5A | 5A, 5A | 5A, 5A | 5A, 5A | 5A, 5A | 5A, 5A |
| Input Type | Non-Inverting | Inverting | Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 7ns, 6ns | 7ns, 6ns | 7ns, 6ns | 7ns, 6ns | 7ns, 6ns | 7ns, 6ns | 7ns, 6ns |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

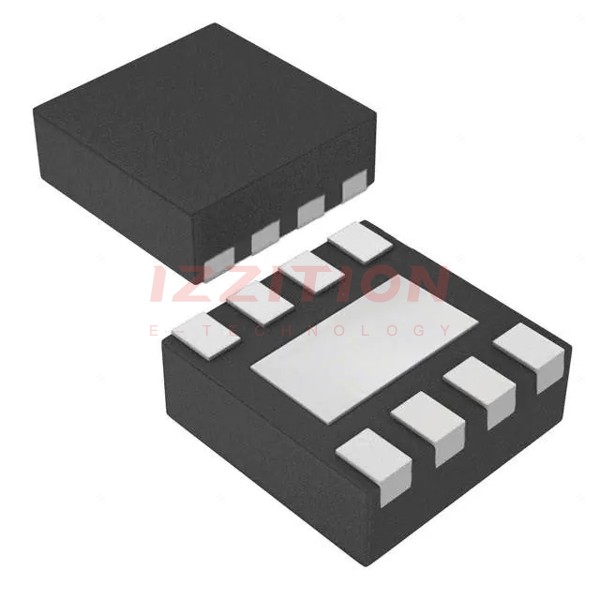

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) |
