Please send RFQ , we will respond immediately.

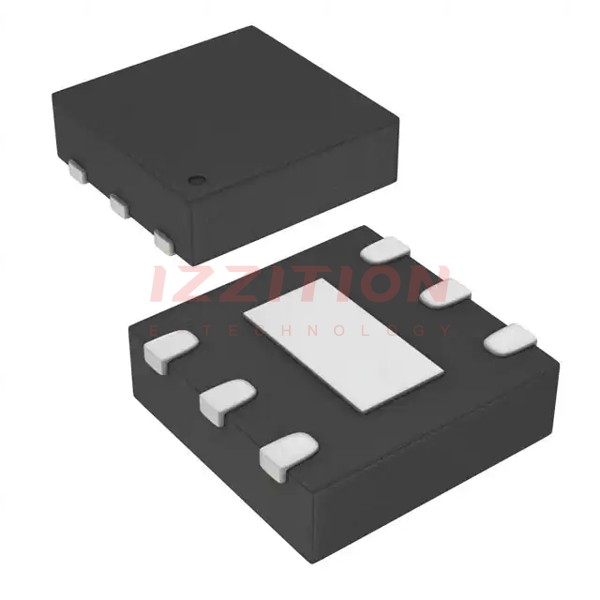

| Part Number | UCC27516DRST | UCC27512DRST | UCC27516DRSR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.4V | 1V, 2.4V | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A | 4A, 8A | 4A, 4A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 8ns, 7ns | 8ns, 7ns | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-SON (3x3) | 6-SON (3x3) | 6-SON (3x3) |
