Please send RFQ , we will respond immediately.

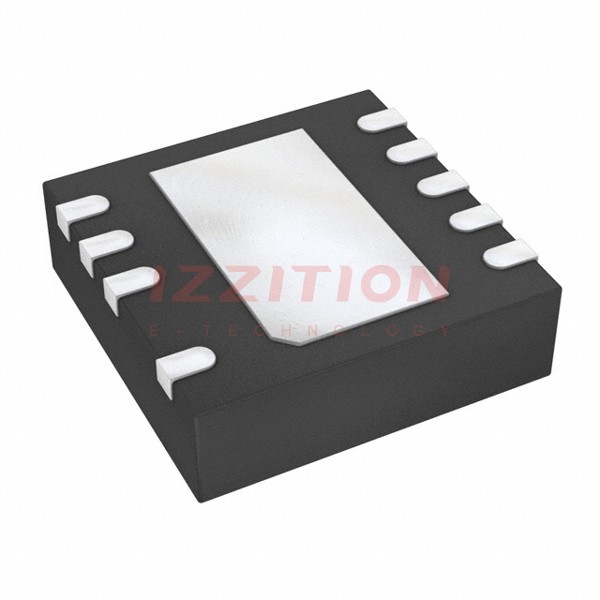

| Part Number | UCC27201ADRCT | UCC27201ADRMT | UCC27200ADRCT | UCC27201ADRCR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V | 0.8V, 2.5V | 3V, 8V | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V | 120 V | 120 V | 120 V |
| Rise / Fall Time (Typ) | 8ns, 7ns | 8ns, 7ns | 8ns, 7ns | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad, 9 Leads | 8-VDFN Exposed Pad | 10-VFDFN Exposed Pad, 9 Leads | 10-VFDFN Exposed Pad, 9 Leads |
| Supplier Device Package | 9-VSON (3x3) | 8-VSON (4x4) | 9-VSON (3x3) | 9-VSON (3x3) |
