Please send RFQ , we will respond immediately.

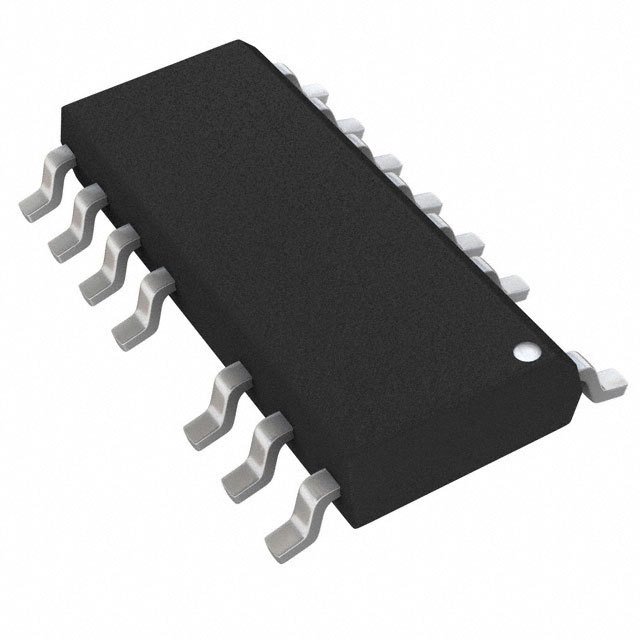

| Part Number | UCC25630-3DDBT | UCC25630-4DDBT | UCC25630-1DDBT | UCC25630-2DDBT | UCC25630-3DDBR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | - | - | - | - | - |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 11.25V ~ 26V | 13V ~ 26V | 13V ~ 26V | 13V ~ 26V | 11.25V ~ 26V |
| Frequency - Switching | 35kHz ~ 1MHz | 35kHz ~ 1MHz | 35kHz ~ 1MHz | 35kHz ~ 1MHz | 35kHz ~ 1MHz |
| Duty Cycle (Max) | 50% | 50% | 50% | 50% | 50% |
| Synchronous Rectifier | No | No | No | No | No |
| Clock Sync | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Hybrid Hysteretic Control (HHC) | Hybrid Hysteretic Control (HHC) | Hybrid Hysteretic Control (HHC) | Hybrid Hysteretic Control (HHC) | Hybrid Hysteretic Control (HHC) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads | 16-SOIC (0.154", 3.90mm Width), 14 Leads | 16-SOIC (0.154", 3.90mm Width), 14 Leads | 16-SOIC (0.154", 3.90mm Width), 14 Leads | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 14-SOIC | 14-SOIC | 14-SOIC | 14-SOIC | 14-SOIC |
