Texas Instruments-UCC23514VDWV - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	150kV/µs
Propagation Delay tpLH / tpHL (Max):	70ns, 70ns
Pulse Width Distortion (Max):	35ns
Rise / Fall Time (Typ):	28ns, 25ns (Max)
Current - Output High, Low:	3A, 3.5A
Current - Peak Output:	4.5A, 5.3A
Voltage - Forward (Vf) (Typ):	2.1V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	14V ~ 33V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	8-SOIC
Approval Agency:	CQC, UL, VDE

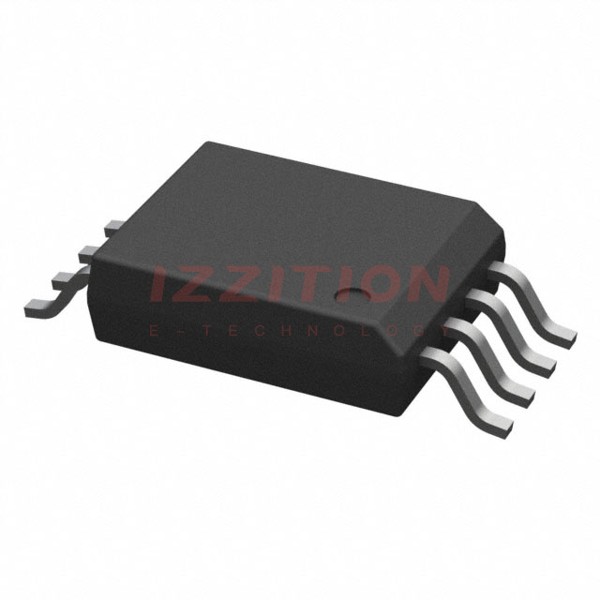

Texas Instruments UCC23514VDWV
