UC3823QTR/81015
  • Share:

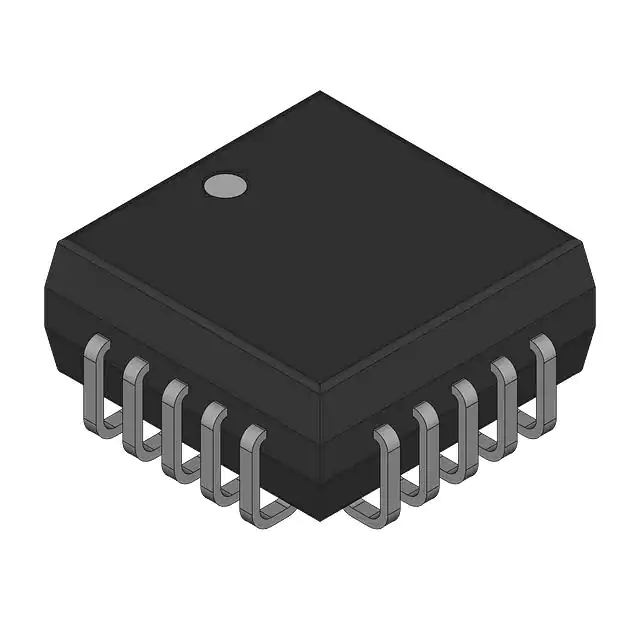

Texas Instruments UC3823QTR/81015

Manufacturer No:
UC3823QTR/81015
Manufacturer:
Texas Instruments
Package:
Bulk
Datasheet:
UC3823QTR/81015 Datasheet
ECAD Model:
-
Description:
ANALG VOLT REG SWITCHING
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:PWM
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):30V
Frequency - Switching:1MHz
Duty Cycle (Max):85%
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Current Limit, Frequency Control, Ramp, Soft Start
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:20-LCC (J-Lead)
Supplier Device Package:20-PLCC (9x9)
0 Remaining View Similar

In Stock

$1.95
154

Please send RFQ , we will respond immediately.
