| Part Number | UC2823QTR | UC2825QTR |
|---|---|---|
| Manufacturer | Texas Instruments | Unitrode |
| Product Status | Discontinued at Digi-Key | Active |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter | - |
| Number of Outputs | 1 | 2 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 30V | 8.4V ~ 30V |
| Frequency - Switching | 340kHz ~ 460kHz | 340kHz ~ 460kHz |
| Duty Cycle (Max) | 80% | 80% |
| Synchronous Rectifier | No | No |
| Clock Sync | No | No |
| Serial Interfaces | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Ramp, Soft Start | Current Limit, Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

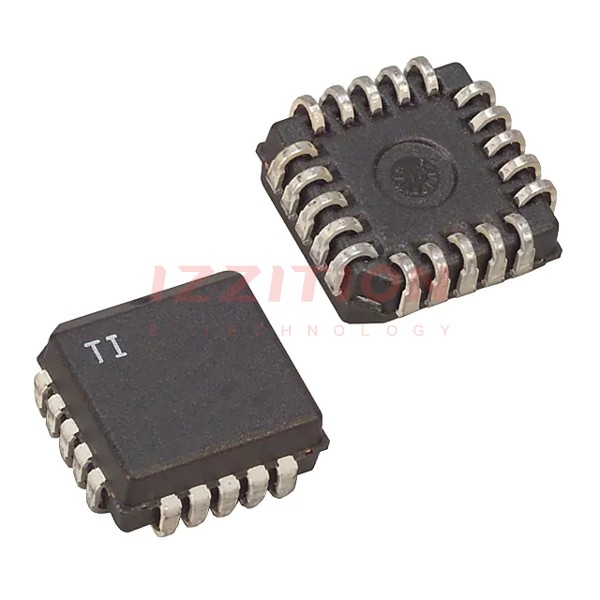

| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) |
