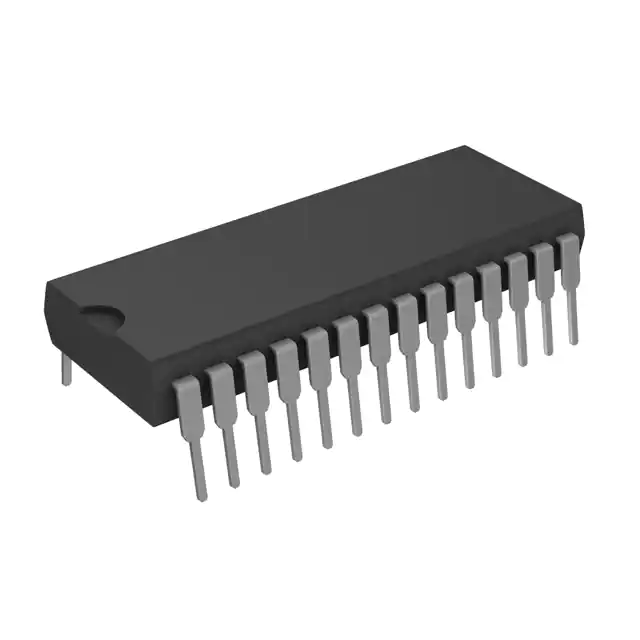

| Part Number | UC2625N | UC3625N | UC2625Q |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Interface | Parallel | Parallel | Parallel |
| Technology | Power MOSFET, Power Darlington | Power MOSFET, Power Darlington | Power MOSFET, Power Darlington |
| Step Resolution | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Current - Output | - | - | - |
| Voltage - Supply | 10V ~ 18V | 10V ~ 18V | 10V ~ 18V |
| Voltage - Load | - | - | - |
| Operating Temperature | -40°C ~ 105°C (TJ) | 0°C ~ 70°C (TJ) | -40°C ~ 105°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PDIP | 28-PDIP | 28-PLCC (11.51x11.51) |
