Please send RFQ , we will respond immediately.

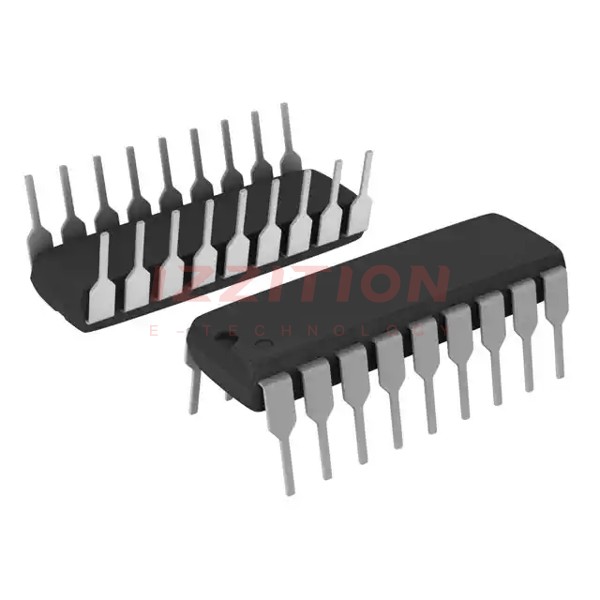

| Part Number | UC2526AN | UC2526N | UC2526AQ | UC2527AN | UC2524AN | UC2525AN | UC2526AJ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Unitrode | Unitrode | Texas Instruments | Texas Instruments | Unitrode |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | - |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | - |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | - |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | - |
| Number of Outputs | 2 | 2 | 2 | 2 | 2 | 2 | - |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 35V | 8V ~ 35V | 7V ~ 35V | 8V ~ 35V | 8V ~ 40V | 8V ~ 35V | - |
| Frequency - Switching | 1Hz ~ 600kHz | 1Hz ~ 400kHz | 1Hz ~ 600kHz | 100Hz ~ 400kHz | 500kHz | 100Hz ~ 400kHz | - |
| Duty Cycle (Max) | 49% | 49% | 49% | 49% | 45% | 49% | - |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | No | Yes | - |
| Clock Sync | Yes | Yes | Yes | Yes | No | Yes | - |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start | Enable, Frequency Control, Reset, Soft Start | Enable, Frequency Control, Reset, Soft Start | Enable, Frequency Control, Soft Start | Frequency Control | Enable, Frequency Control, Soft Start | - |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | - |
| Package / Case | 18-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 18-PDIP | 18-PDIP | 20-PLCC (9x9) | 16-PDIP | 16-PDIP | 16-PDIP | - |
