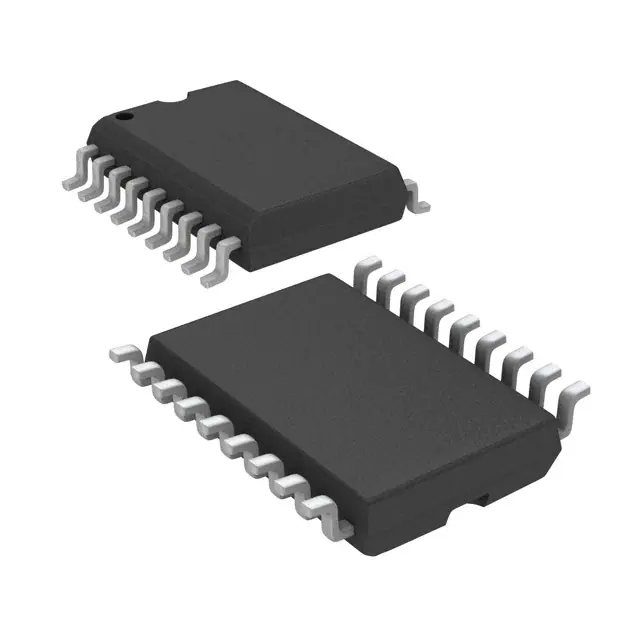

| Part Number | UC2526ADW | UC2524ADW | UC2525ADW |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 35V | 8V ~ 40V | 8V ~ 35V |
| Frequency - Switching | 1Hz ~ 600kHz | 500kHz | 100Hz ~ 400kHz |
| Duty Cycle (Max) | 49% | 45% | 49% |
| Synchronous Rectifier | Yes | No | Yes |
| Clock Sync | Yes | No | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start | Frequency Control | Enable, Frequency Control, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC | 16-SOIC | 16-SOIC |
