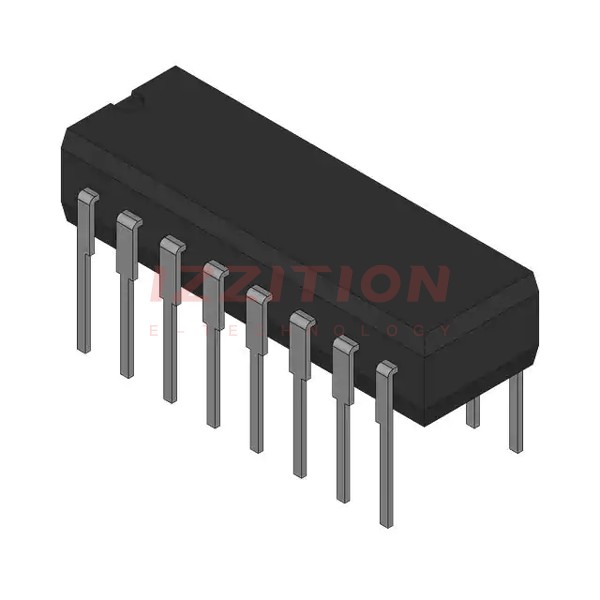

| Part Number | UC1865J | UC1861J |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 | 2 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 22V | 22V |
| Frequency - Switching | 50kHz ~ 500kHz | 50kHz ~ 500kHz |
| Duty Cycle (Max) | - | 50% |
| Synchronous Rectifier | No | No |
| Clock Sync | No | No |
| Serial Interfaces | - | - |
| Control Features | Soft Start | Soft Start |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP |
