| Part Number | UA7915CKTER | UA7905CKTER |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Negative | Negative |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | -25V | -25V |
| Voltage - Output (Min/Fixed) | -15V | -5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 1.1V @ 1A | 1.1V @ 1A |
| Current - Output | 1.5A | 1.5A |
| Current - Quiescent (Iq) | - | - |
| Current - Supply (Max) | - | - |
| PSRR | 60dB (120Hz) | 60dB (120Hz) |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

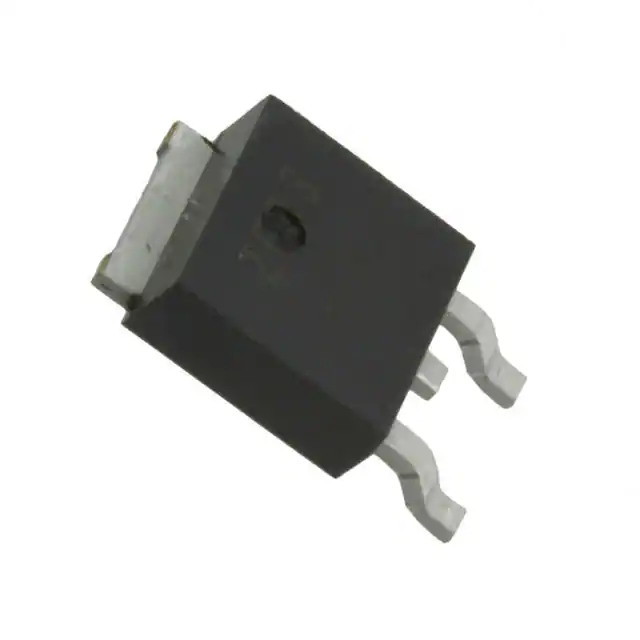

| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-252-4, DPak (3 Leads + Tab) |
| Supplier Device Package | 3-PowerFLEX™ | 3-PowerFLEX™ |
