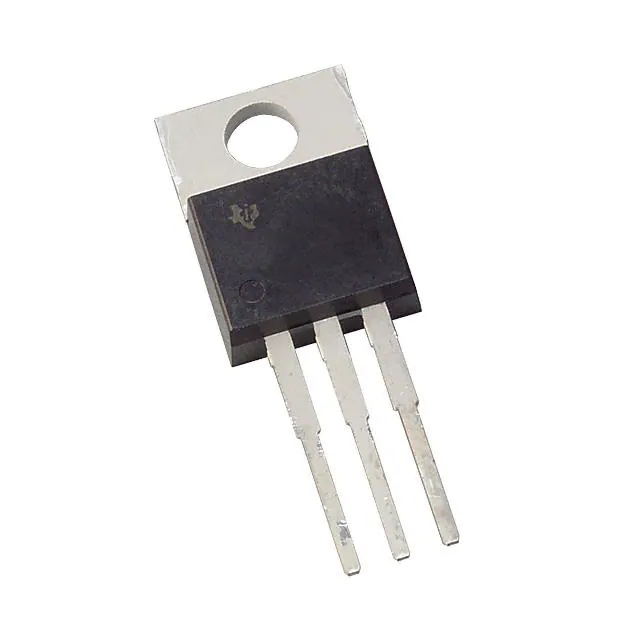

| Part Number | UA78M08CKC | UA79M08CKC | UA78M08CKCS | UA78M05CKC |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Obsolete |
| Output Configuration | Positive | Negative | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 25V | -25V | 25V | 25V |
| Voltage - Output (Min/Fixed) | 8V | -8V | 8V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 350mA | 1.1V @ 350mA | 2V @ 350mA | 2V @ 350mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | - | 2 mA | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 80dB (120Hz) | 59dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C (TJ) | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
