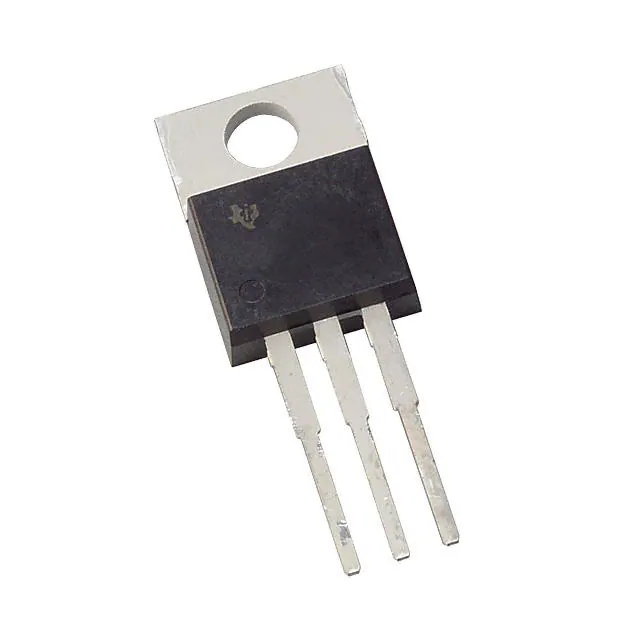

| Part Number | UA78M05CKC | UA78M05CKCS | UA78M05IKC | UA78M08CKC | UA79M05CKC |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | - | Positive | Negative |
| Output Type | Fixed | Fixed | - | Fixed | Fixed |
| Number of Regulators | 1 | 1 | - | 1 | 1 |
| Voltage - Input (Max) | 25V | 25V | - | 25V | -25V |
| Voltage - Output (Min/Fixed) | 5V | 5V | - | 8V | -5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 350mA | 2V @ 350mA | - | 2V @ 350mA | 1.1V @ 350mA |
| Current - Output | 500mA | 500mA | - | 500mA | 500mA |
| Current - Quiescent (Iq) | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 80dB (120Hz) | 80dB (120Hz) | - | 80dB (120Hz) | 60dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | - | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | - | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | - | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | - | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-220-3 | - | TO-220-3 | TO-220-3 |
