Please send RFQ , we will respond immediately.

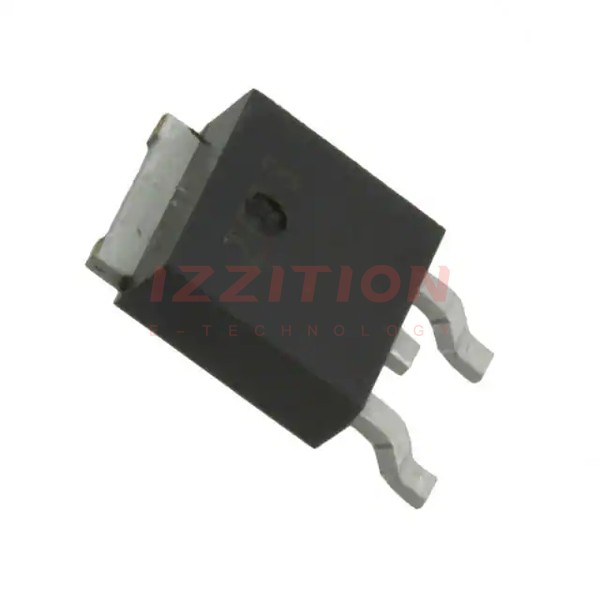

| Part Number | UA7812CKTER | UA7812CKTTR | UA7815CKTER | UA7810CKTER |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 30V | 30V | 30V | 28V |
| Voltage - Output (Min/Fixed) | 12V | 12V | 15V | 10V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 1A | 2V @ 1A | 2V @ 1A | 2V @ 1A |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | - | - | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 78dB (120Hz) | 78dB (120Hz) | 78dB (120Hz) | 78dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-4, DPak (3 Leads + Tab) | TO-252-4, DPak (3 Leads + Tab) |
| Supplier Device Package | 3-PowerFLEX™ | DDPAK/TO-263-3 | 3-PowerFLEX™ | 3-PowerFLEX™ |
