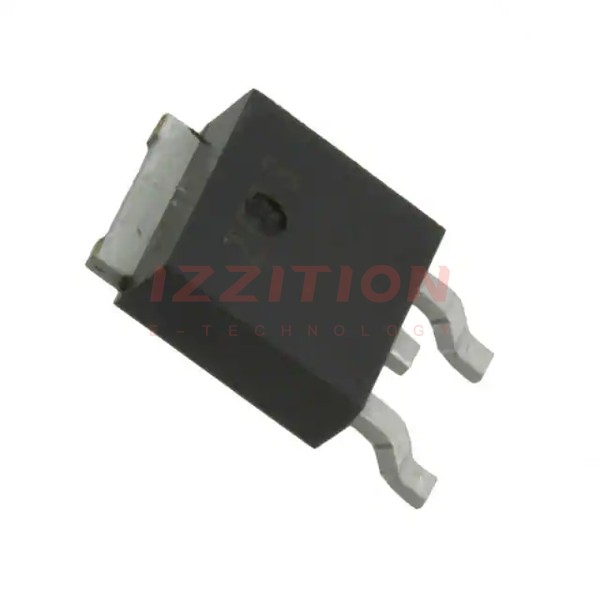

| Part Number | UA7808CKTER | UA7808CKTTR | UA7805CKTER | UA7808CKTE |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | - |
| Output Type | Fixed | Fixed | Fixed | - |
| Number of Regulators | 1 | 1 | 1 | - |
| Voltage - Input (Max) | 25V | 25V | 25V | - |
| Voltage - Output (Min/Fixed) | 8V | 8V | 5V | - |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 1A | 2V @ 1A | 2V @ 1A | - |
| Current - Output | 1.5A | 1.5A | 1.5A | - |
| Current - Quiescent (Iq) | - | - | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 72dB ~ 62dB (120Hz) | 72dB ~ 62dB (120Hz) | 78dB ~ 68dB (120Hz) | - |
| Control Features | - | - | - | - |
| Protection Features | Over Temperature, Reverse Polarity | Over Temperature, Reverse Polarity | Over Temperature, Reverse Polarity | - |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-4, DPak (3 Leads + Tab) | - |
| Supplier Device Package | 3-PowerFLEX™ | DDPAK/TO-263-3 | 3-PowerFLEX™ | - |
