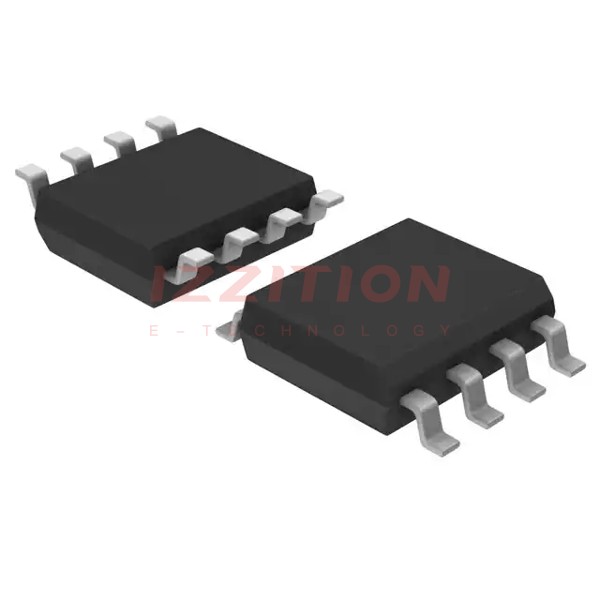

| Part Number | TXS0102DCTTG4 | TXS0102DCUTG4 | TXS0102DCTTE4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Translator Type | Voltage Level | Voltage Level | Voltage Level |
| Channel Type | Bidirectional | Bidirectional | Bidirectional |
| Number of Circuits | 1 | 1 | 1 |
| Channels per Circuit | 2 | 2 | 2 |
| Voltage - VCCA | 1.65 V ~ 3.6 V | 1.65 V ~ 3.6 V | 1.65 V ~ 3.6 V |
| Voltage - VCCB | 2.3 V ~ 5.5 V | 2.3 V ~ 5.5 V | 2.3 V ~ 5.5 V |
| Input Signal | - | - | - |
| Output Signal | - | - | - |
| Output Type | Open Drain, Push-Pull | Open Drain, Push-Pull | Open Drain, Push-Pull |
| Data Rate | 24Mbps | 24Mbps | 24Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing | Auto-Direction Sensing | Auto-Direction Sensing |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | 8-VFSOP (0.091", 2.30mm Width) | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Supplier Device Package | SM8 | 8-VSSOP | SM8 |
