Please send RFQ , we will respond immediately.

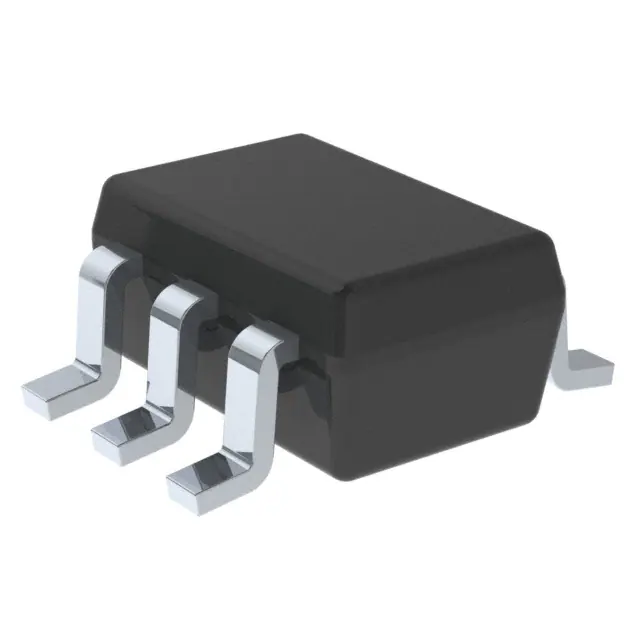

| Part Number | TXB0101DCKR | TXS0101DCKR | TXB0101DCKT | TXU0101DCKR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Translator Type | Voltage Level | Voltage Level | Voltage Level | Voltage Level |
| Channel Type | Bidirectional | Bidirectional | Bidirectional | Unidirectional |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Channels per Circuit | 1 | 1 | 1 | 1 |
| Voltage - VCCA | 1.2 V ~ 3.6 V | 1.65 V ~ 3.6 V | 1.2 V ~ 3.6 V | 1.08 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V | 2.3 V ~ 5.5 V | 1.65 V ~ 5.5 V | 1.08 V ~ 5.5 V |
| Input Signal | - | - | - | - |
| Output Signal | - | - | - | - |
| Output Type | Tri-State, Non-Inverted | Open Drain, Push-Pull | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Data Rate | 100Mbps | 24Mbps | 100Mbps | 200Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Features | Auto-Direction Sensing | Auto-Direction Sensing | Auto-Direction Sensing | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 |
