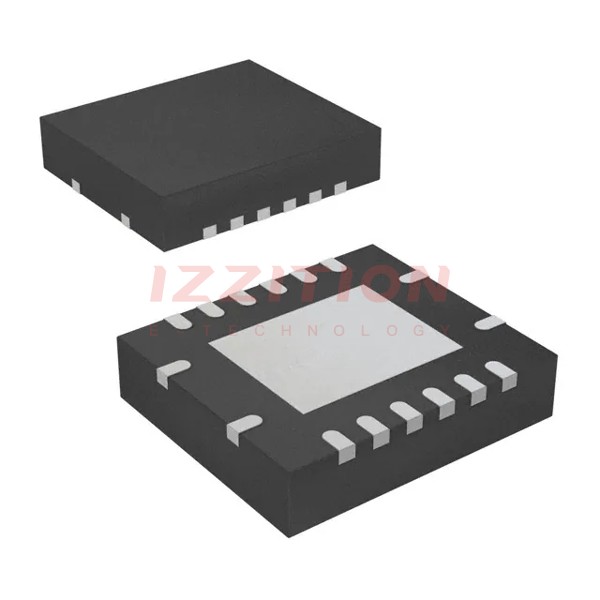

| Part Number | TS3A5017RGYRG4 | TS3A5018RGYRG4 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Switch Circuit | SP4T | SPDT |
| Multiplexer/Demultiplexer Circuit | 4:1 | 2:1 |
| Number of Circuits | 2 | 4 |
| On-State Resistance (Max) | 12Ohm | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm | 300mOhm |
| Voltage - Supply, Single (V+) | 2.3V ~ 3.6V | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 9.5ns, 3.5ns | 8ns, 6.5ns |
| -3db Bandwidth | 165MHz | 300MHz |
| Charge Injection | 5pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 4.5pF, 19pF | 4.5pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA |
| Crosstalk | -49dB @ 1MHz | -48dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x3.5) | 16-VQFN (4x3.5) |
