Texas Instruments-TPSM84209RKHR - DC DC Converters Product Specifications and Latest Quotes

Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	28V
Voltage - Output 1:	1.2 ~ 6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	91.7%
Mounting Type:	Surface Mount
Package / Case:	9-PowerQFN
Size / Dimension:	0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm)
Supplier Device Package:	9-QFN-FCMOD (4.5x4)
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

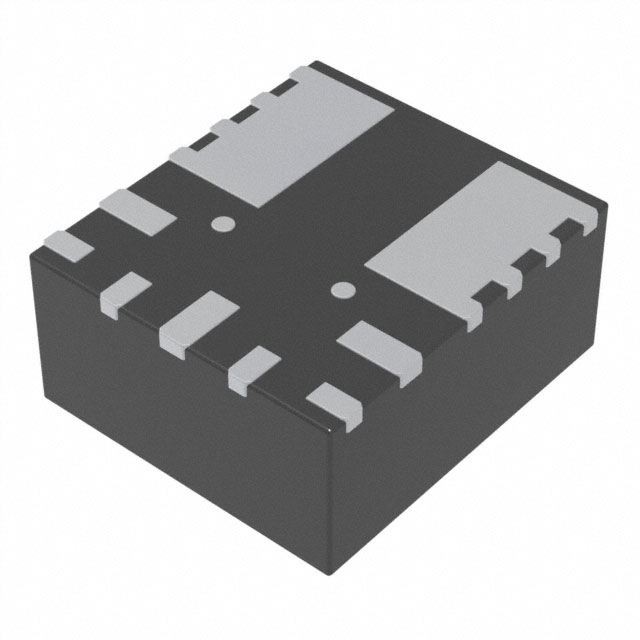

Texas Instruments TPSM84209RKHR
