| Part Number | TPS7B8450QWDRBRQ1 | TPS7B8480QWDRBRQ1 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V |
| Voltage - Output (Min/Fixed) | 5V | 8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.225V @ 150mA | 0.225V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 26 µA | 26 µA |
| Current - Supply (Max) | - | - |
| PSRR | 55dB (1kHz) | 55dB (1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

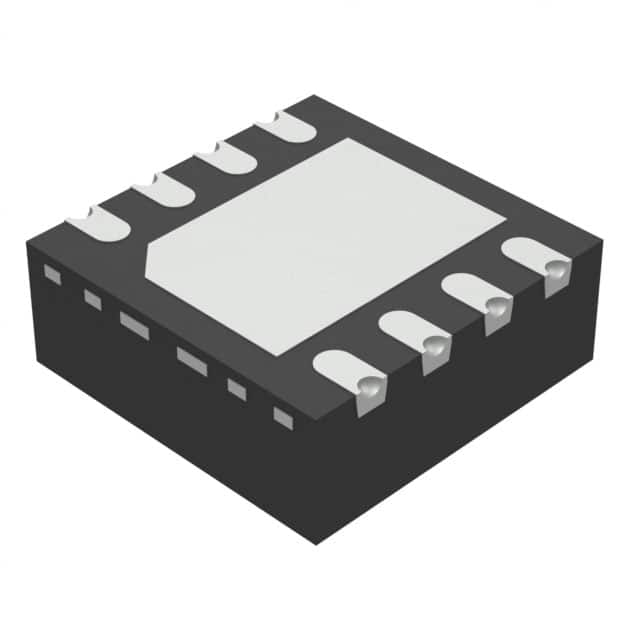

| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) | 8-SON (3x3) |
