Please send RFQ , we will respond immediately.
| Part Number | TPS7A8901RTJT | TPS7A8701RTJT | TPS7A8801RTJT | TPS7A8901RTJR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 2 | 2 | 2 | 2 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 5.2V | 5.2V | 5V | 5.2V |
| Voltage Dropout (Max) | 0.4V @ 2A | 0.1V @ 500mA | 0.2V @ 1A | 0.4V @ 2A |
| Current - Output | 2A, 2A | 500mA | 1A | 2A, 2A |
| Current - Quiescent (Iq) | 3.5 mA | - | 3.5 mA | 3.5 mA |
| Current - Supply (Max) | 4 mA | 4 mA | 4 mA | 4 mA |
| PSRR | 40dB (500kHz) | 40dB (500kHz) | 40dB (500kHz) | 40dB (500kHz) |
| Control Features | Enable, Power Good, Soft Start | Enable | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

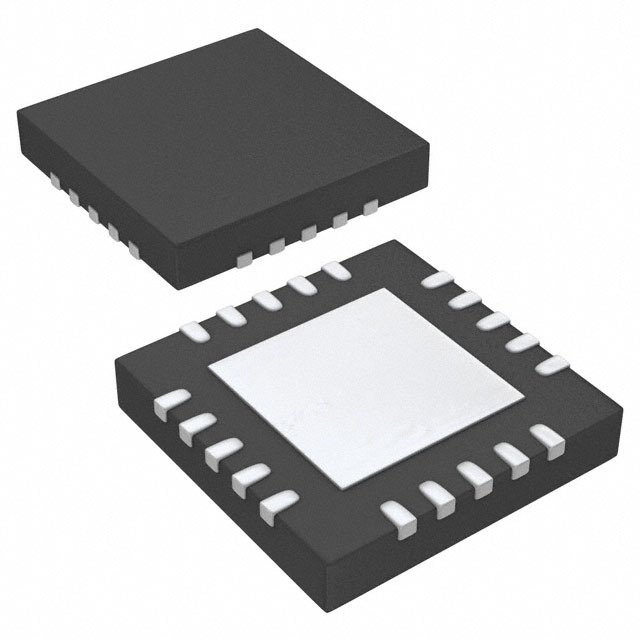

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) | 20-QFN (4x4) | 20-QFN (4x4) | 20-QFN (4x4) |
