Please send RFQ , we will respond immediately.
| Part Number | TPS7A1108PDRVR | TPS7A1108PDRVT | TPS7A1118PDRVR | TPS7A1128PDRVR | TPS7A1106PDRVR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 1.8V | 2.8V | 0.6V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.14V @ 500mA | 0.14V @ 500mA | 0.14V @ 500mA | 0.14V @ 500mA | 0.14V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 2.6 µA | 2.6 µA | 2.6 µA | 2.6 µA | 2.6 µA |
| Current - Supply (Max) | 11 µA | 11 µA | 11 µA | 11 µA | 11 µA |
| PSRR | 64dB ~ 35dB (1kHz ~ 1.5MHz) | 64dB ~ 35dB (1kHz ~ 1.5MHz) | 64dB ~ 35dB (1kHz ~ 1.5MHz) | 64dB ~ 35dB (1kHz ~ 1.5MHz) | 64dB ~ 35dB (1kHz ~ 1.5MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

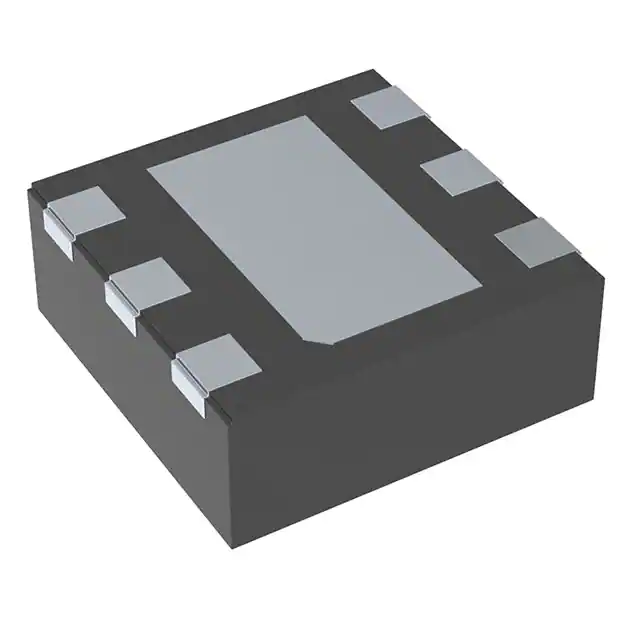

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) | 6-WSON (2x2) | 6-WSON (2x2) | 6-WSON (2x2) | 6-WSON (2x2) |
