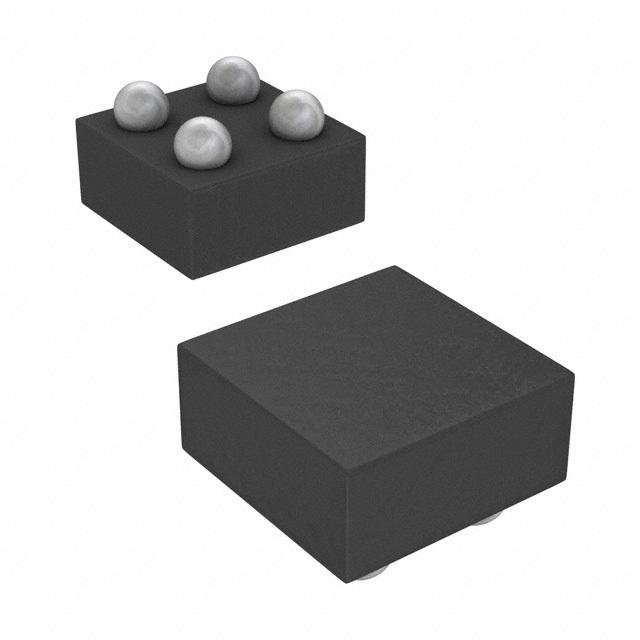

| Part Number | TPS7A0518PYKAR | TPS7A0508PYKAR | TPS7A0510PYKAR | TPS7A0512PYKAR | TPS7A0515PYKAR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 0.8V | 1V | 1.2V | 1.5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.382V @ 200mA | 1.004V @ 200mA | 0.837V @ 200mA | 0.679V @ 200mA | 0.525V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 3 µA | 3 µA | 3 µA | 3 µA | 3 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 40dB (1kHz ~ 1MHz) | 40dB (1kHz ~ 1MHz) | 40dB (1kHz ~ 1MHz) | 40dB (1kHz ~ 1MHz) | 40dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA |
