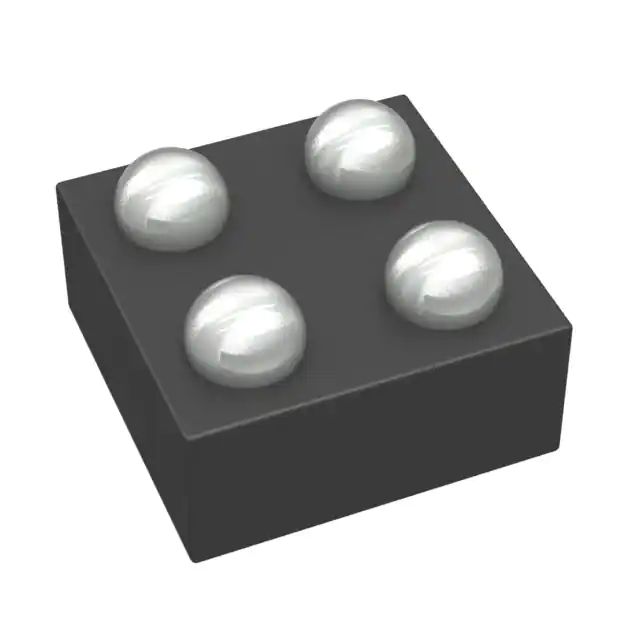

| Part Number | TPS7A0225PYCHR | TPS7A0325PYCHR | TPS7A0228PYCHR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.8V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.36V @ 200mA | 0.36V @ 200mA | 0.36V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 60 nA | 300 nA | 60 nA |
| Current - Supply (Max) | - | - | - |
| PSRR | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (0.64x0.64) | 4-DSBGA (0.64x0.64) | 4-DSBGA (0.64x0.64) |
