| Part Number | TPS799L57YZYT | TPS799L54YZYT | TPS799L57YZYR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 5.7V | 5.4V | 5.7V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.16V @ 200mA | 0.16V @ 200mA | 0.16V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 60 µA | 60 µA | 60 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 70dB ~ 38dB (100Hz ~ 100kHz) | 70dB ~ 38dB (100Hz ~ 100kHz) | 70dB ~ 38dB (100Hz ~ 100kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

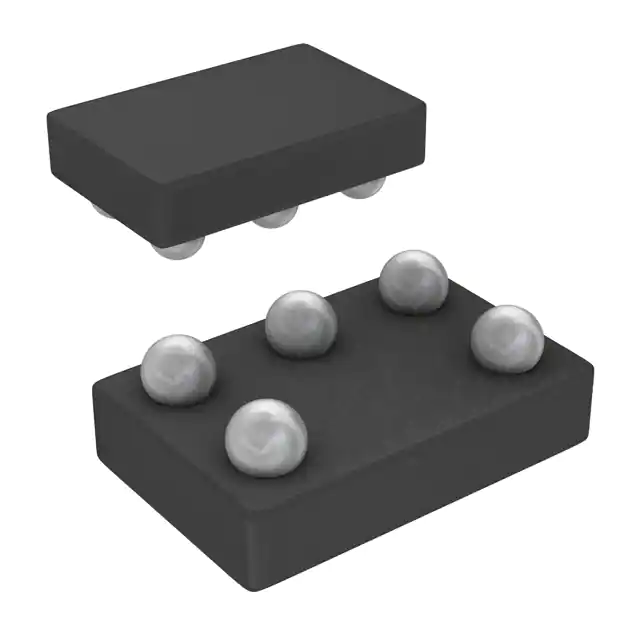

| Package / Case | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA | 5-DSBGA | 5-DSBGA |
