Please send RFQ , we will respond immediately.

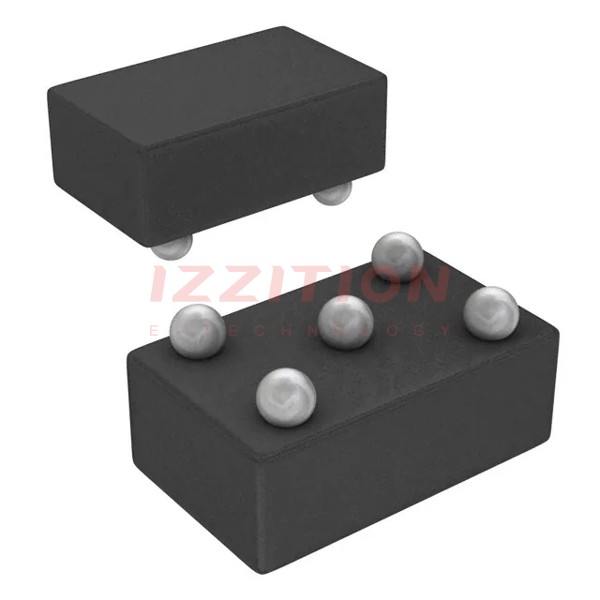

| Part Number | TPS79318YZQT | TPS79328YZQT | TPS79318YEQT | TPS79318YZQR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | - | 0.2V @ 200mA | - | - |
| Current - Output | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 220 µA | 220 µA | 220 µA | 220 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 70dB ~ 43dB (100Hz ~ 100kHz) | 70dB ~ 43dB (100Hz ~ 100kHz) | 70dB ~ 43dB (100Hz ~ 100kHz) | 70dB ~ 43dB (100Hz ~ 100kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA | 5-DSBGA | 5-DSBGA NanoStar™ | 5-DSBGA |
