TPS78510QWDRBRQ1
  • Share:

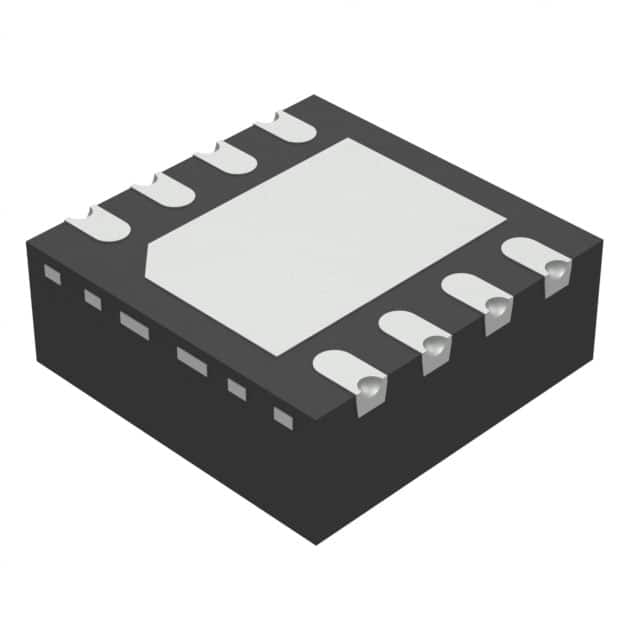

Texas Instruments TPS78510QWDRBRQ1

Manufacturer No:
TPS78510QWDRBRQ1
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
TPS78510QWDRBRQ1 Datasheet
ECAD Model:
-
Description:
AUTOMOTIVE, 1-A, HIGH-ACCURACY,
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):6V
Voltage - Output (Min/Fixed):1V
Voltage - Output (Max):-
Voltage Dropout (Max):0.8V @ 1A
Current - Output:1A
Current - Quiescent (Iq):40 µA
Current - Supply (Max):-
PSRR:60dB ~ 30dB (1kHz ~ 1MHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:8-VDFN Exposed Pad
Supplier Device Package:8-SON (3x3)
0 Remaining View Similar

In Stock

$1.61
548

Please send RFQ , we will respond immediately.

Similar Products

Part Number TPS78510QWDRBRQ1 TPS78511QWDRBRQ1   TPS78518QWDRBRQ1   TPS78550QWDRBRQ1   TPS78512QWDRBRQ1   TPS78410QWDRBRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active Active
Output Configuration Positive Positive Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed Fixed Fixed
Number of Regulators 1 1 1 1 1 1
Voltage - Input (Max) 6V 6V 6V 6V 6V 6V
Voltage - Output (Min/Fixed) 1V 1.1V 1.8V 5V 1.2V 1V
Voltage - Output (Max) - - - - - -
Voltage Dropout (Max) 0.8V @ 1A 0.8V @ 1A 0.425V @ 1A 0.315V @ 1A 0.725V @ 1A 0.775V @ 300mA
Current - Output 1A 1A 1A 1A 1A 300mA
Current - Quiescent (Iq) 40 µA 40 µA 40 µA 40 µA 40 µA 40 µA
Current - Supply (Max) - - - - - -
PSRR 60dB ~ 30dB (1kHz ~ 1MHz) 60dB ~ 30dB (1kHz ~ 1MHz) 60dB ~ 30dB (1kHz ~ 1MHz) 60dB ~ 30dB (1kHz ~ 1MHz) 60dB ~ 30dB (1kHz ~ 1MHz) 60dB ~ 30dB (1kHz ~ 1MHz)
Control Features Enable Enable Enable Enable Enable Enable
Protection Features Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank
Package / Case 8-VDFN Exposed Pad 8-VDFN Exposed Pad 8-VDFN Exposed Pad 8-VDFN Exposed Pad 8-VDFN Exposed Pad 8-VDFN Exposed Pad
Supplier Device Package 8-SON (3x3) 8-SON (3x3) 8-SON (3x3) 8-SON (3x3) 8-SON (3x3) 8-SON (3x3)
