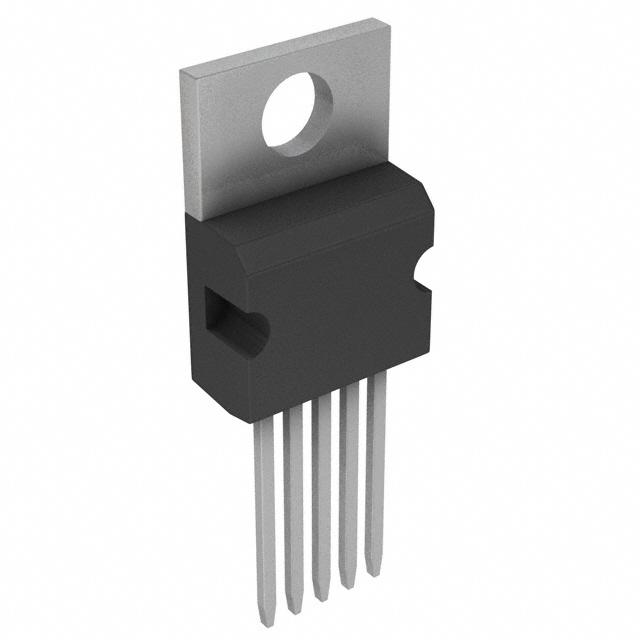

| Part Number | TPS75701KC | TPS75901KC | TPS75801KC | TPS75501KC | TPS75601KC |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V | 1.22V | 1.225V | 1.22V | 1.22V |
| Voltage - Output (Max) | 5V | 5V | 5V | 5V | 5V |
| Voltage Dropout (Max) | - | - | - | - | - |
| Current - Output | 3A | 7.5A | 3A | 5A | 5A |
| Current - Quiescent (Iq) | 200 µA | 200 µA | 200 µA | 200 µA | 200 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 62dB (100Hz) | 58dB (100Hz) | 62dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable | Enable, Power Good | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 |
