TPS75615KC
  • Share:

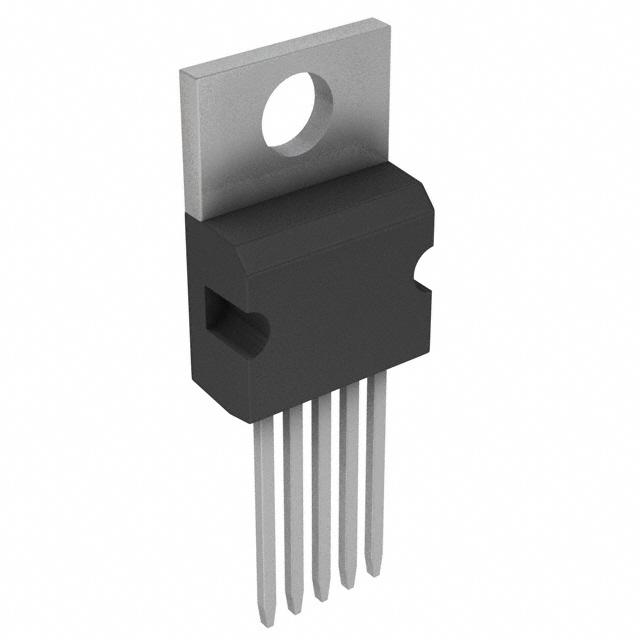

Texas Instruments TPS75615KC

Manufacturer No:
TPS75615KC
Manufacturer:
Texas Instruments
Package:
Bulk
Datasheet:
TPS75615KC Datasheet
ECAD Model:
-
Description:
IC REG LINEAR 1.5V 5A TO220-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):1.5V
Voltage - Output (Max):-
Voltage Dropout (Max):-
Current - Output:5A
Current - Quiescent (Iq):200 µA
Current - Supply (Max):-
PSRR:60dB (100Hz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-220-5
Supplier Device Package:TO-220-5
0 Remaining View Similar

In Stock

$4.00
37

Please send RFQ , we will respond immediately.

Similar Products

Part Number TPS75615KC TPS75915KC   TPS75815KC   TPS75618KC   TPS75625KC   TPS75715KC   TPS75515KC
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active Active Active
Output Configuration Positive Positive Positive Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed Fixed Fixed Fixed
Number of Regulators 1 1 1 1 1 1 1
Voltage - Input (Max) 5.5V 5.5V 5.5V 5.5V 5.5V 5.5V 5.5V
Voltage - Output (Min/Fixed) 1.5V 1.5V 1.5V 1.8V 2.5V 1.5V 1.5V
Voltage - Output (Max) - - - - - - -
Voltage Dropout (Max) - - - - - - -
Current - Output 5A 7.5A 3A 5A 5A 3A 5A
Current - Quiescent (Iq) 200 µA 200 µA 200 µA 200 µA 200 µA 200 µA 200 µA
Current - Supply (Max) - - - - - - -
PSRR 60dB (100Hz) 58dB (100Hz) 62dB (100Hz) 60dB (100Hz) 60dB (100Hz) 62dB (100Hz) 60dB (100Hz)
Control Features Enable Enable, Power Good Enable Enable Enable Enable, Power Good Enable, Power Good
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case TO-220-5 TO-220-5 TO-220-5 TO-220-5 TO-220-5 TO-220-5 TO-220-5
Supplier Device Package TO-220-5 TO-220-5 TO-220-5 TO-220-5 TO-220-5 TO-220-5 TO-220-5
