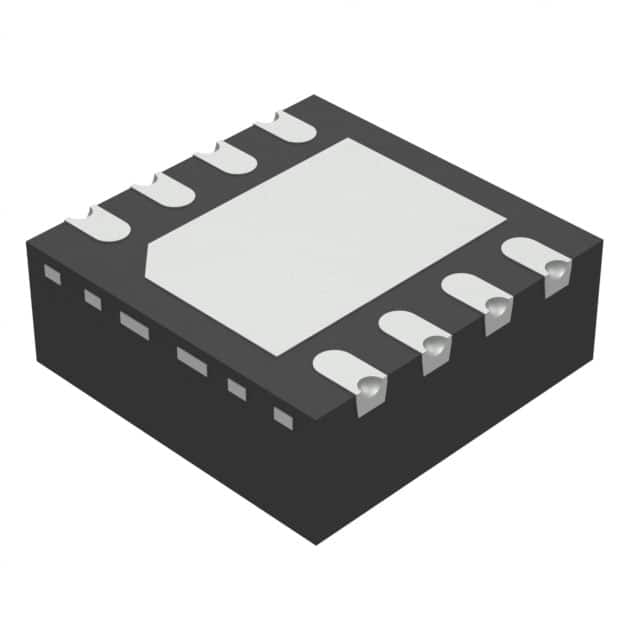

| Part Number | TPS74611PQWDRBRQ1 | TPS74612PQWDRBRQ1 | TPS74611PQWDRVRQ1 | TPS74615PQWDRBRQ1 | TPS74618PQWDRBRQ1 | TPS74613PQWDRBRQ1 | TPS74617PQWDRBRQ1 | TPS74511PQWDRBRQ1 | TPS74601PQWDRBRQ1 | TPS74610PQWDRBRQ1 | TPS746115PQWDRBRQ1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Adjustable | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.1V | 1.2V | 1.1V | 1.5V | 1.8V | 1.3V | 1.7V | 1.1V | 0.55V | 1V | 1.15V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | 5.5V | - | - |
| Voltage Dropout (Max) | 0.79V @ 1A | 0.625V @ 1A | 0.6V @ 1A | 0.48V @ 1A | 0.4V @ 1A | 0.625V @ 1A | 0.48V @ 1A | 0.6V @ 500mA | 1.09V @ 1A | 0.79V @ 1A | 0.79V @ 1A |
| Current - Output | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 500mA | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - | - | - |
| PSRR | 53dB ~ 30dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) | - | - | 57dB ~ 35dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) | 53dB ~ 30dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable | Enable, Power Good | Enable | Current Limit, Enable, Power Good | Current Limit, Enable, Power Good | Enable | Enable | Enable | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 6-WDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) | 8-SON (3x3) | 6-WSON (2x2) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) | 8-SON (3x3) |
