| Part Number | TPS74522PQWDRVRQ1 | TPS74528PQWDRVRQ1 | TPS74525PQWDRVRQ1 | TPS74529PQWDRVRQ1 | TPS74512PQWDRVRQ1 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2.2V | 2.8V | 2.5V | 2.9V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.14V @ 500mA | 0.105V @ 500mA | 0.105V @ 500mA | 0.105V @ 500mA | 0.285V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 36 µA | 36 µA | 36 µA | 36 µA | 36 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 57dB ~ 35dB (1kHz ~ 1MHz) | 57dB ~ 35dB (1kHz ~ 1MHz) | 57dB ~ 35dB (1kHz ~ 1MHz) | 57dB ~ 35dB (1kHz ~ 1MHz) | 57dB ~ 35dB (1kHz ~ 1MHz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

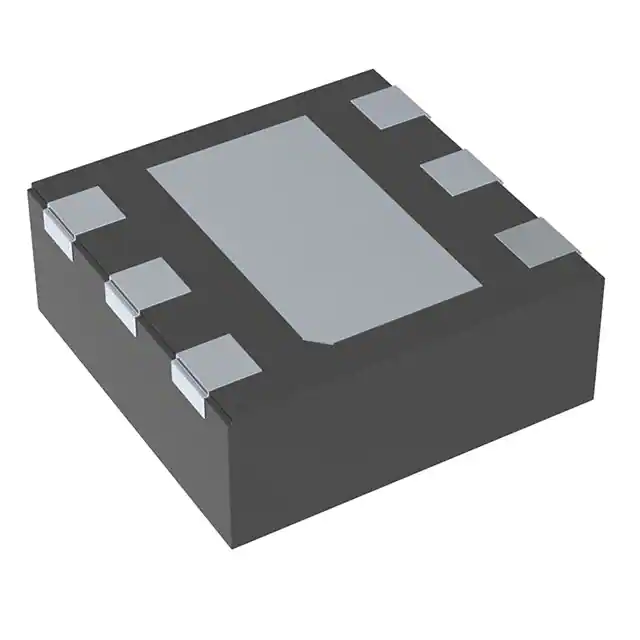

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) | 6-WSON (2x2) | 6-WSON (2x2) | 6-WSON (2x2) | 6-WSON (2x2) |
