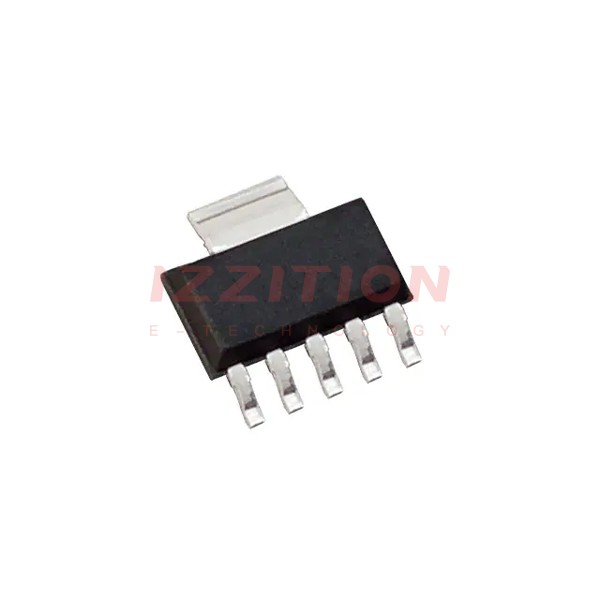

| Part Number | TPS73218DCQRG4 | TPS73218DCQG4 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.15V @ 250mA | 0.15V @ 250mA |
| Current - Output | 250mA | 250mA |
| Current - Quiescent (Iq) | 550 µA | 550 µA |
| Current - Supply (Max) | 950 µA | 950 µA |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-223-6 | SOT-223-6 |
| Supplier Device Package | SOT-223-6 | SOT-223-6 |
