Please send RFQ , we will respond immediately.
| Part Number | TPS71818-27YZCR | TPS71818-27YZCT |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 2.7V | 1.8V, 2.7V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | - | - |
| Current - Output | 200mA | 200mA |
| Current - Quiescent (Iq) | 160 µA | 160 µA |
| Current - Supply (Max) | 250 µA | 250 µA |
| PSRR | 63dB ~ 44dB (100Hz ~ 1MHz) | 63dB ~ 44dB (100Hz ~ 1MHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

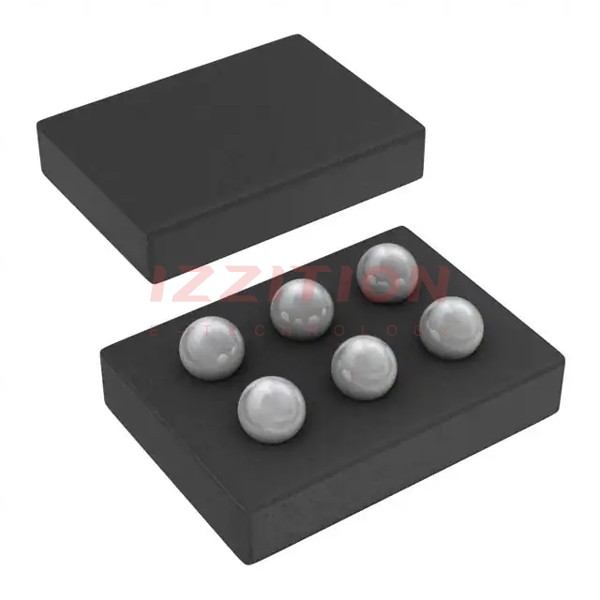

| Package / Case | 6-UFBGA, DSBGA | 6-UFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA (1x1.5) | 6-DSBGA (1x1.5) |
