| Part Number | TPS63805YFFR | TPS63806YFFR | TPS63805YFFT |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up, Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.3V | 1.3V | 1.3V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 1.8V |
| Voltage - Output (Max) | 5.2V | 5.2V | 5V |
| Current - Output | 2A | 2A | 2A |
| Frequency - Switching | 1.4MHz, 1.6MHz, 2.1MHz | 2.1MHz | 1.4MHz ~ 2.7MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

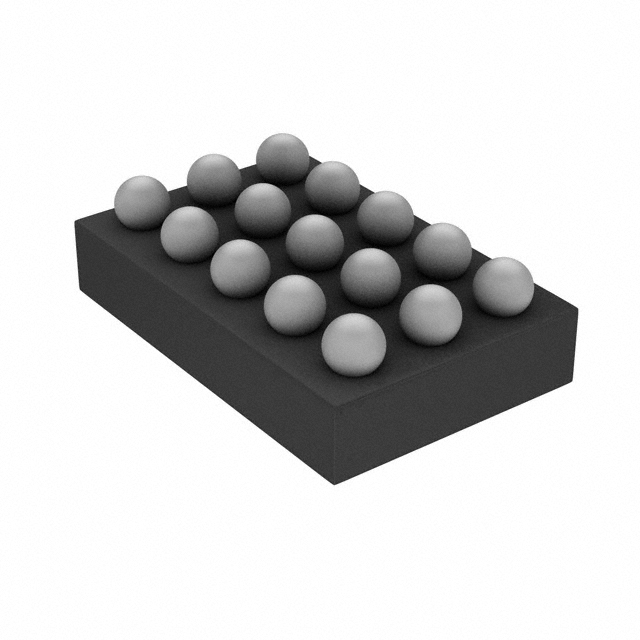

| Package / Case | 15-UFBGA, DSBGA | 15-UFBGA, DSBGA | 15-UFBGA, DSBGA |
| Supplier Device Package | 15-DSBGA | 15-DSBGA | 15-DSBGA |
