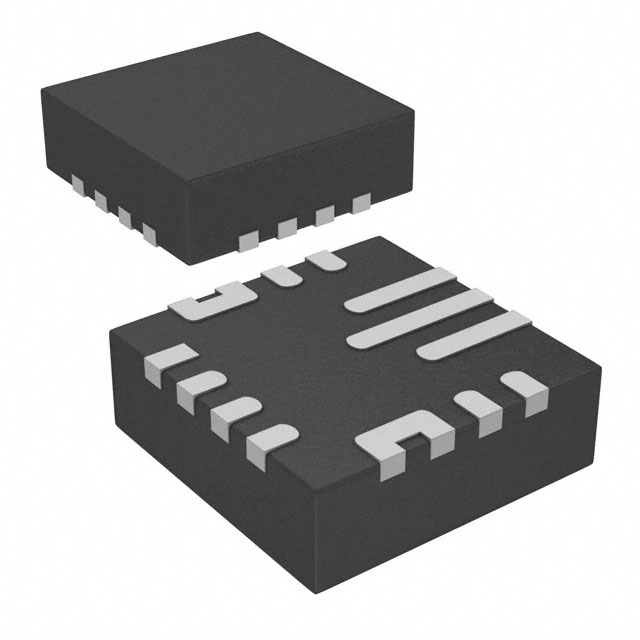

| Part Number | TPS630701RNMR | TPS63070RNMR | TPS630702RNMR | TPS630701RNMT |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Fixed | Adjustable | Adjustable | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2V | 2V | 2V | 2V |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 5V | 2.5V | 2.5V | 5V |
| Voltage - Output (Max) | - | 9V | 9V | - |
| Current - Output | 2A | 3.6A (Switch) | 2A | 2A |
| Frequency - Switching | 2.4MHz | 2.4MHz | 2.4MHz | 2.4MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 15-PowerVFQFN | 15-PowerVFQFN | 15-PowerVFQFN | 15-PowerVFQFN |
| Supplier Device Package | 15-VQFN-HR (3x2.5) | 15-VQFN-HR (3x2.5) | 15-VQFN-HR (3x2.5) | 15-VQFN-HR (3x2.5) |
