| Part Number | TPS63010YFFR | TPS63011YFFR | TPS63050YFFR | TPS63810YFFR | TPS63010YFFT | TPS63012YFFR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up, Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Adjustable | Programmable | Adjustable | Adjustable | Adjustable | Programmable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2V | 2V | 2.5V | 2.2V | 2V | 2V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 2.8V, 3.3V | 2.5V | 1.8V | 1.2V | 2.9V, 3.4V |
| Voltage - Output (Max) | 5.5V | - | 5.5V | 5.2V | 5.5V | - |
| Current - Output | 2A (Switch) | 2A (Switch) | 500mA | 2.5A | 2A (Switch) | 2A (Switch) |
| Frequency - Switching | 2.4MHz | 2.4MHz | 2.5MHz | 1.6MHz, 2MHz, 2.6MHz | 2.4MHz | 2.4MHz |
| Synchronous Rectifier | Yes | Yes | Yes | No | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

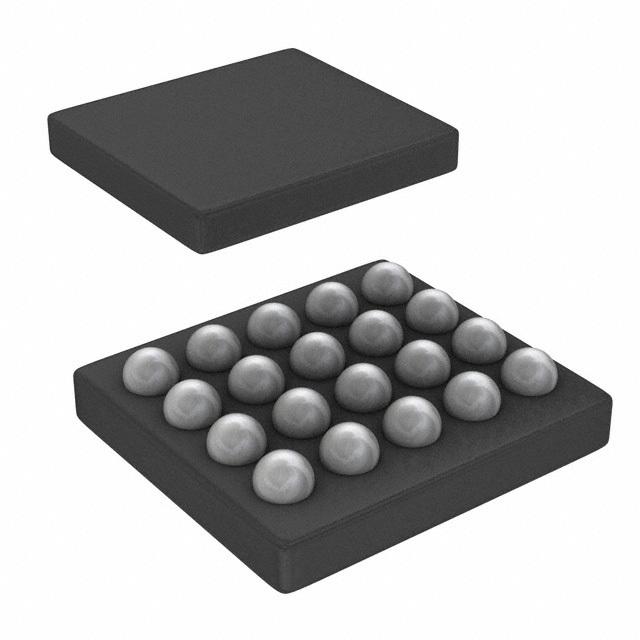

| Package / Case | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA | 12-UFBGA, DSBGA | 15-UFBGA, DSBGA | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA | 20-DSBGA | 12-DSBGA | 15-DSBGA | 20-DSBGA | 20-DSBGA |
