Please send RFQ , we will respond immediately.
| Part Number | TPS6286800CRQYR | TPS6286820CRQYR | TPS6286810CRQYR | TPS6286900CRQYR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Programmable | Adjustable | Adjustable | Programmable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.4V | 2.4V | 2.4V | 2.4V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.2V | 0.8V | 0.4V | 0.2V |
| Voltage - Output (Max) | 0.84V | 3.35V | 1.675V | 0.84V |
| Current - Output | 4A | 4A | 4A | 6A |
| Frequency - Switching | 2.4MHz | 2.4MHz | 2.4MHz | 2.4MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

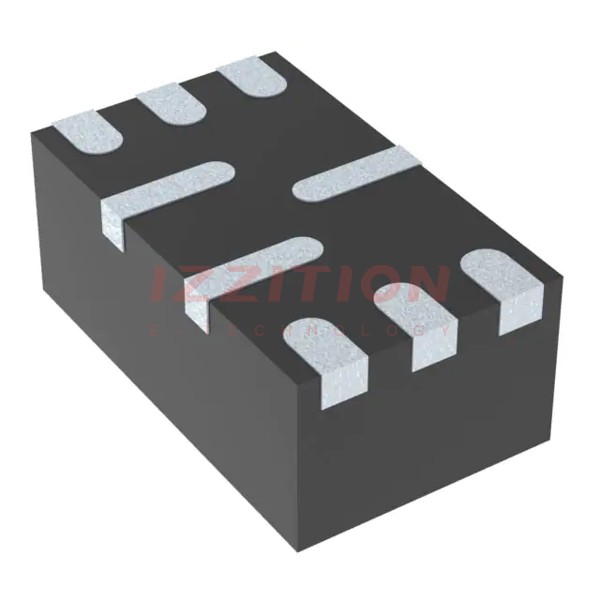

| Package / Case | 9-VFQFN | 9-VFQFN | 9-VFQFN | 9-VFQFN |
| Supplier Device Package | 9-VQFN-HR (1.5x2.5) | 9-VQFN-HR (1.5x2.5) | 9-VQFN-HR (1.5x2.5) | 9-VQFN-HR (1.5x2.5) |
