| Part Number | TPS62802YKAR | TPS62808YKAR | TPS62807YKAR | TPS62802YKAT | TPS62806YKAR | TPS62800YKAR | TPS62801YKAR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V (1.8V) | 1.8V (1.8V) | 0.8V (1.2V) | 1.8V (1.8V) | 0.4V (0.7V) | 0.4V (0.7V) | 0.8V (1.2V) |
| Voltage - Output (Max) | 3.3V | 3.3V | 1.55V | 3.3V | 0.775V | 0.775V | 1.55V |
| Current - Output | 1A | 600mA | 600mA | 1A | 600mA | 1A | 1A |
| Frequency - Switching | 4MHz | 1.5MHz | 1.5MHz | 4MHz | 1.5MHz | 4MHz | 4MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

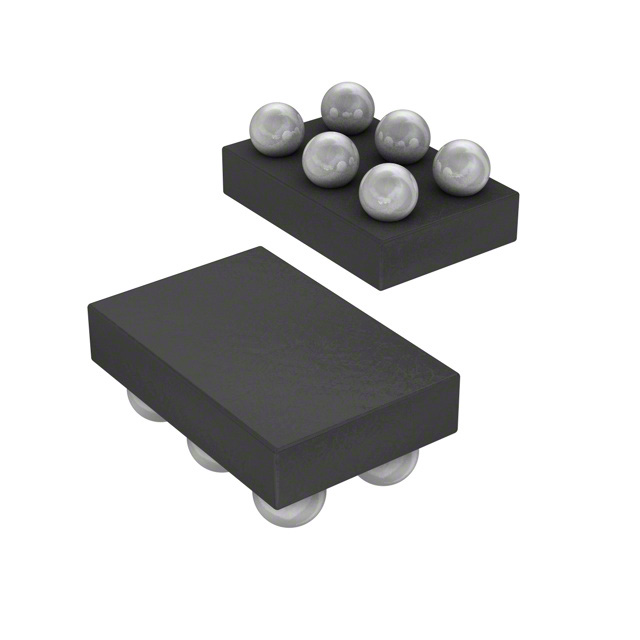

| Package / Case | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA (1.05x0.70) | 6-DSBGA (1.05x0.70) | 6-DSBGA (1.05x0.70) | 6-DSBGA (1.05x0.70) | 6-DSBGA (1.05x0.70) | 6-DSBGA (1.05x0.70) | 6-DSBGA (1.05x0.70) |
