Please send RFQ , we will respond immediately.
| Part Number | TPS62356YZGT | TPS62350YZGT | TPS62351YZGT | TPS62352YZGT | TPS62353YZGT | TPS62354YZGT | TPS62356YZGR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V (1.8V) | 0.75V (1.05V, 1.35V) | 0.9V (1.1V, 1.5V) | 0.75V (1.05V, 1.2V) | 0.75V (1V, 1.2V) | 0.75V (1.05V, 1.3V) | 1.5V (1.8V) |
| Voltage - Output (Max) | 1.98V | 1.54V | 1.69V | 1.44V | 1.54V | 1.54V | 1.98V |
| Current - Output | 1A | 800mA | 800mA | 800mA | 800mA | 800mA | 1A |
| Frequency - Switching | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

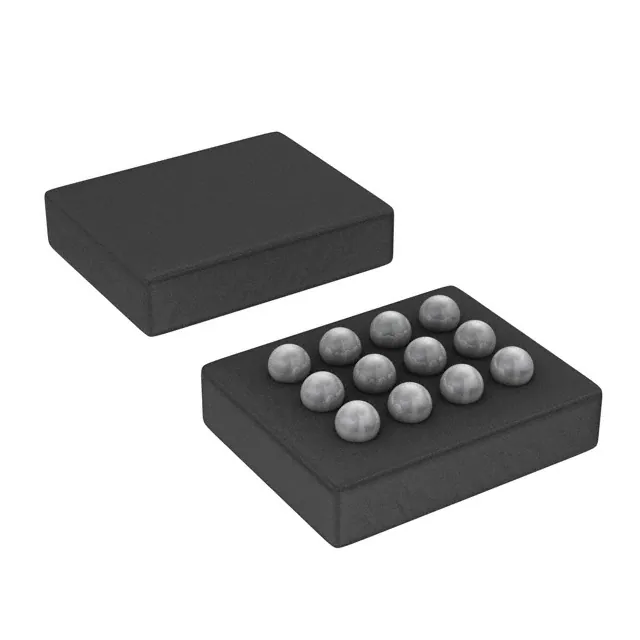

| Package / Case | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA |
| Supplier Device Package | 12-DSBGA | 12-DSBGA | 12-DSBGA | 12-DSBGA | 12-DSBGA | 12-DSBGA | 12-DSBGA |
