| Part Number | TPS62304YZDT | TPS62305YZDT | TPS62300YZDT | TPS62301YZDT | TPS62302YZDT | TPS62303YZDT | TPS62304YZDR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Adjustable | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.875V | 0.6V | 1.5V | 1.6V | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - | 5.4V | - | - | - | - |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA |
| Frequency - Switching | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

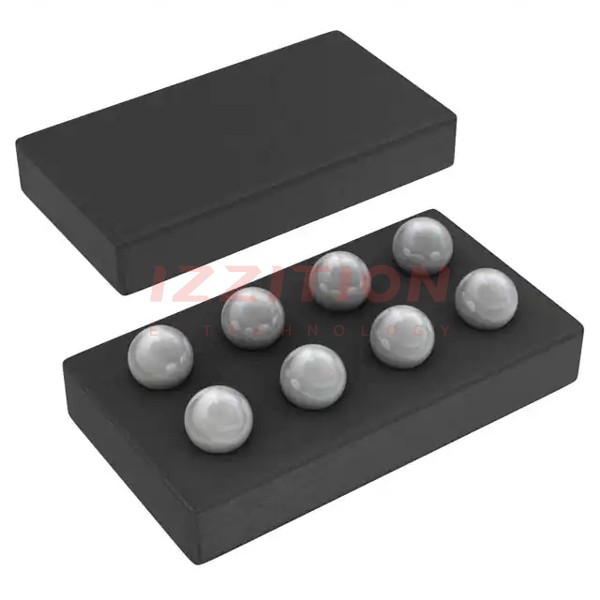

| Package / Case | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA | 8-UFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA | 8-DSBGA | 8-DSBGA | 8-DSBGA | 8-DSBGA | 8-DSBGA | 8-DSBGA |
