| Part Number | TPS62234DRYR | TPS62238DRYR | TPS62234DRYT | TPS62237DRYR | TPS62235DRYR | TPS62239DRYR | TPS62236DRYR | TPS62230DRYR | TPS622314DRYR | TPS62231DRYR | TPS62232DRYR | TPS62233DRYR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | - | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | - | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | - | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | - | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.05V | - | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V |
| Voltage - Input (Max) | 6V | - | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2.1V | - | 2.1V | 3.3V | 1.2V | 1V | 1.85V | 2.5V | 1.5V | 1.8V | 1.2V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - Output | 500mA | - | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA |
| Frequency - Switching | 3MHz | - | 3MHz | 2MHz | 2MHz | 3MHz | 2MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz |
| Synchronous Rectifier | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

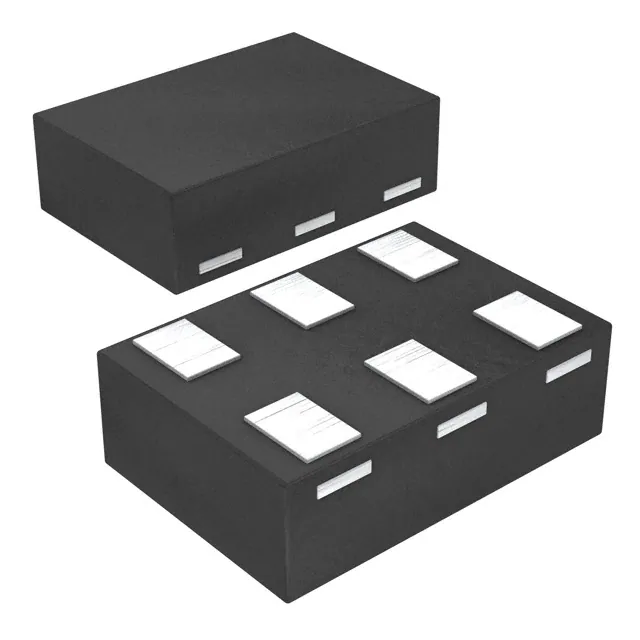

| Package / Case | 6-UFDFN | - | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) | - | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) |
