| Part Number | TPS622312DRYR | TPS622312DRYT | TPS622317DRYR | TPS62231DRYR | TPS62232DRYR | TPS622314DRYR | TPS622313DRYR | TPS622315DRYR | TPS622316DRYR | TPS622318DRYR | TPS622319DRYR | TPS622310DRYR | TPS622311DRYR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V | 2.05V |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2V | 2V | 2.9V | 1.8V | 1.2V | 1.5V | 1.3V | 1.15V | 2.7V | 1.25V | 1.2V | 2.3V | 1.1V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA |
| Frequency - Switching | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 2MHz | 3MHz | 3MHz | 2MHz | 3MHz | 2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

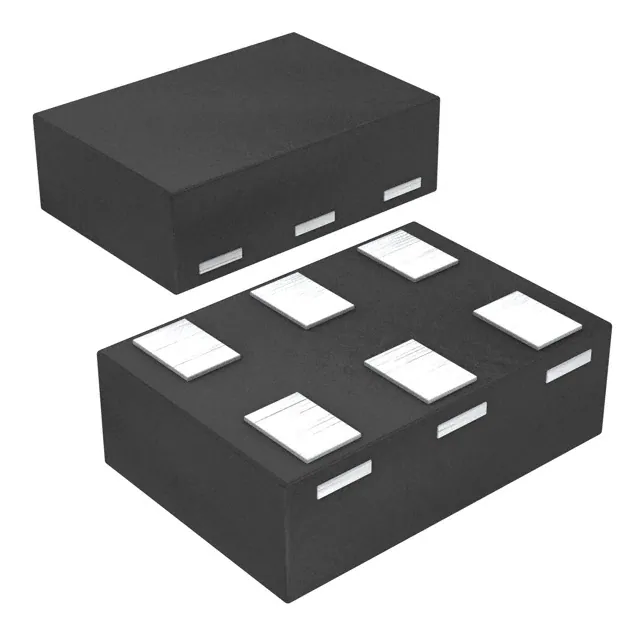

| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) | 6-SON (1.45x1) |
