TPS62171QDSGTQ1
  • Share:

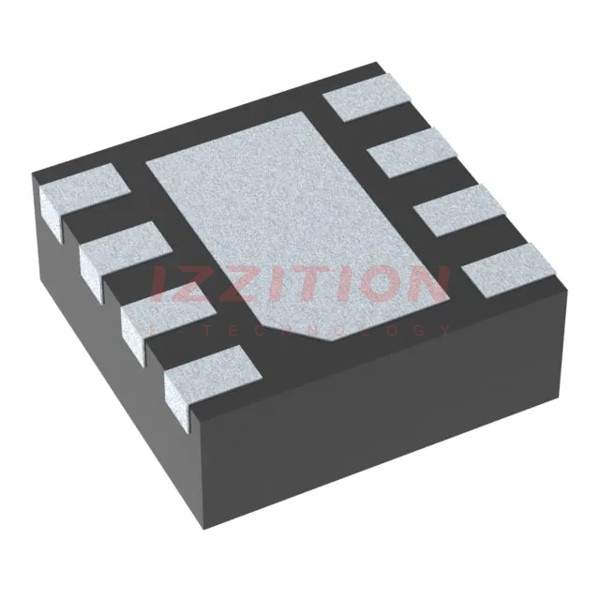

Texas Instruments TPS62171QDSGTQ1

Manufacturer No:
TPS62171QDSGTQ1
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
TPS62171QDSGTQ1 Datasheet
ECAD Model:
-
Description:
IC REG BUCK 1.8V 500MA 8WSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Fixed
Number of Outputs:1
Voltage - Input (Min):3V
Voltage - Input (Max):17V
Voltage - Output (Min/Fixed):1.8V
Voltage - Output (Max):-
Current - Output:500mA
Frequency - Switching:2.25MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad
Supplier Device Package:8-WSON (2x2)
0 Remaining View Similar

In Stock

$1.82
252

Please send RFQ , we will respond immediately.

Similar Products

Part Number TPS62171QDSGTQ1 TPS62172QDSGTQ1   TPS62170QDSGTQ1   TPS62171QDSGRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active
Function Step-Down Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive Positive
Topology Buck Buck Buck Buck
Output Type Fixed Fixed Adjustable Fixed
Number of Outputs 1 1 1 1
Voltage - Input (Min) 3V 3V 3V 3V
Voltage - Input (Max) 17V 17V 17V 17V
Voltage - Output (Min/Fixed) 1.8V 3.3V 0.9V 1.8V
Voltage - Output (Max) - - 6V -
Current - Output 500mA 500mA 500mA 500mA
Frequency - Switching 2.25MHz 2.25MHz 2.25MHz 2.25MHz
Synchronous Rectifier Yes Yes Yes Yes
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-WFDFN Exposed Pad 8-WFDFN Exposed Pad 8-WFDFN Exposed Pad 8-WFDFN Exposed Pad
Supplier Device Package 8-WSON (2x2) 8-WSON (2x2) 8-WSON (2x2) 8-WSON (2x2)
