Please send RFQ , we will respond immediately.
| Part Number | TPS61305YFFR | TPS61325YFFR | TPS61305YFFT | TPS61300YFFR | TPS61301YFFR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 3 | 3 | 3 | 3 | 3 |
| Voltage - Supply (Min) | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 5.7V | 2.5V ~ 5.7V | 5.7V | 5.7V | 5.7V |
| Current - Output / Channel | 400mA, 800mA (Flash) | 445mA, 890mA (Flash) | 400mA, 800mA (Flash) | 400mA, 800mA (Flash) | 400mA, 800mA (Flash) |
| Frequency | 1.92MHz | 2MHz | 1.92MHz | 1.92MHz | 1.92MHz |
| Dimming | I²C | PWM | I²C | I²C | I²C |
| Applications | Camera Flash | Camera Flash | Camera Flash | Camera Flash | Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

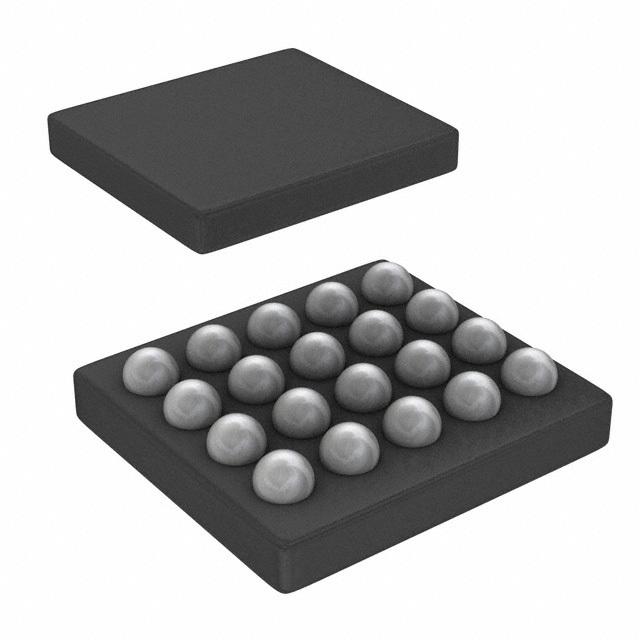

| Package / Case | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA | 20-DSBGA | 20-DSBGA | 20-DSBGA | 20-DSBGA |
