Please send RFQ , we will respond immediately.
| Part Number | TPS61236RWLR | TPS61236RWLT | TPS61235RWLR | TPS61236PRWLR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Function | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Fixed | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.3V | 2.3V | 2.3V | 2.3V |
| Voltage - Input (Max) | 4.9V | 4.9V | 4.5V | 4.9V |
| Voltage - Output (Min/Fixed) | 2.9V | 2.9V | 5.1V | 2.9V |
| Voltage - Output (Max) | 5.5V | 5.5V | - | 5.5V |
| Current - Output | 6.5A (Switch) | 6.5A (Switch) | 6.5A (Switch) | 6.5A (Switch) |
| Frequency - Switching | 1MHz | 1MHz | 1MHz | 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

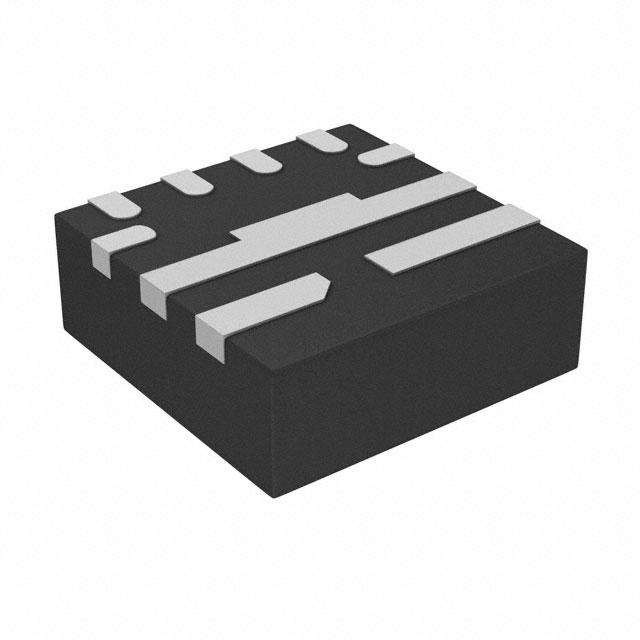

| Package / Case | 9-VFQFN | 9-VFQFN | 9-VFQFN | 9-VFQFN |
| Supplier Device Package | 9-VQFN-HR (2.5x2.5) | 9-VQFN-HR (2.5x2.5) | 9-VQFN-HR (2.5x2.5) | 9-VQFN-HR (2.5x2.5) |
