Please send RFQ , we will respond immediately.
| Part Number | TPS61181RTERG4 | TPS61182RTERG4 | TPS61180RTERG4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 6 |
| Voltage - Supply (Min) | 5V | 5V | 5V |
| Voltage - Supply (Max) | 24V | 24V | 24V |
| Voltage - Output | 38V | 38V | 38V |
| Current - Output / Channel | 25mA | 25mA | 25mA |
| Frequency | 1MHz | 1.3MHz | 1MHz |
| Dimming | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

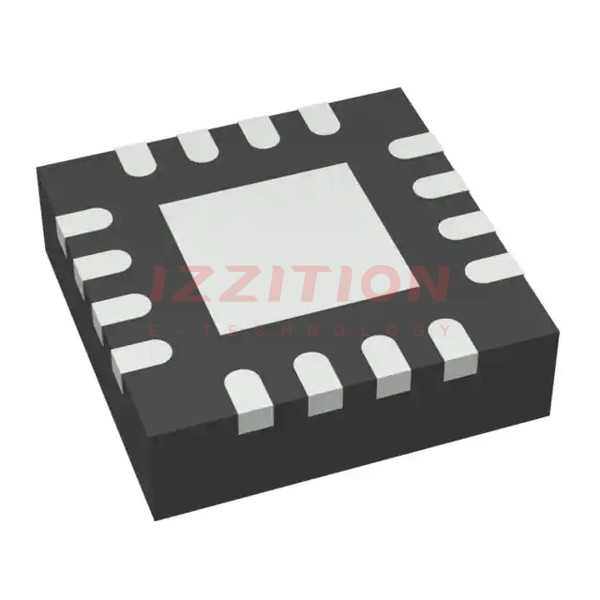

| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) | 16-WQFN (3x3) | 16-WQFN (3x3) |
