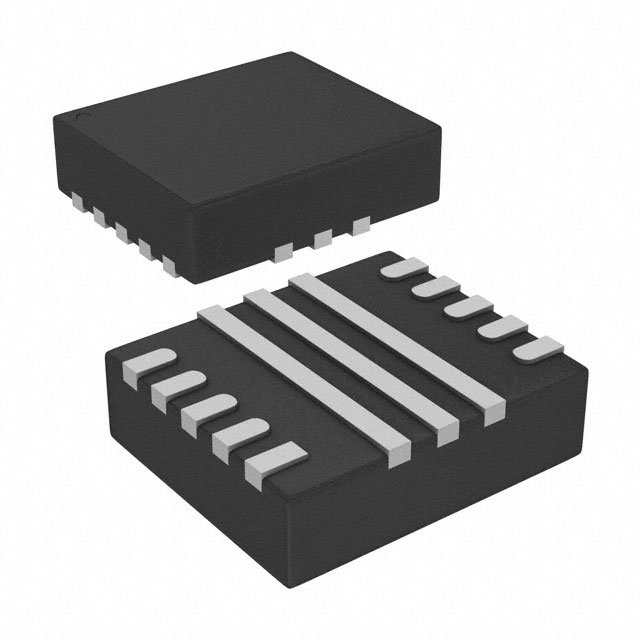

| Part Number | TPS61178RNWR | TPS61178RNWT | TPS611781RNWR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 20V | 20V | 20V |
| Voltage - Output (Min/Fixed) | 4.5V | 4.5V | 4.5V |
| Voltage - Output (Max) | 20V | 20V | 20V |
| Current - Output | 10A (Switch) | 10A (Switch) | 10A (Switch) |
| Frequency - Switching | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 13-PowerVFQFN | 13-PowerVFQFN | 13-PowerVFQFN |
| Supplier Device Package | 13-VQFN-HR (3x3.5) | 13-VQFN-HR (3x3.5) | 13-VQFN-HR (3x3.5) |
