| Part Number | TPS61162AYFFR | TPS61163AYFFR | TPS61162DYFFR | TPS61162YFFR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Not For New Designs | Discontinued at Digi-Key |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Output | 2.7V ~ 27V | 2.7V ~ 38V | 2.7V ~ 27V | 2.7V ~ 27V |
| Current - Output / Channel | 30mA | 30mA | 30mA | 30mA |
| Frequency | 1.2MHz | 1.2MHz | 1.2MHz | 1.2MHz |
| Dimming | Analog, PWM | Analog, PWM | Analog, PWM | Analog, PWM |
| Applications | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -55°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

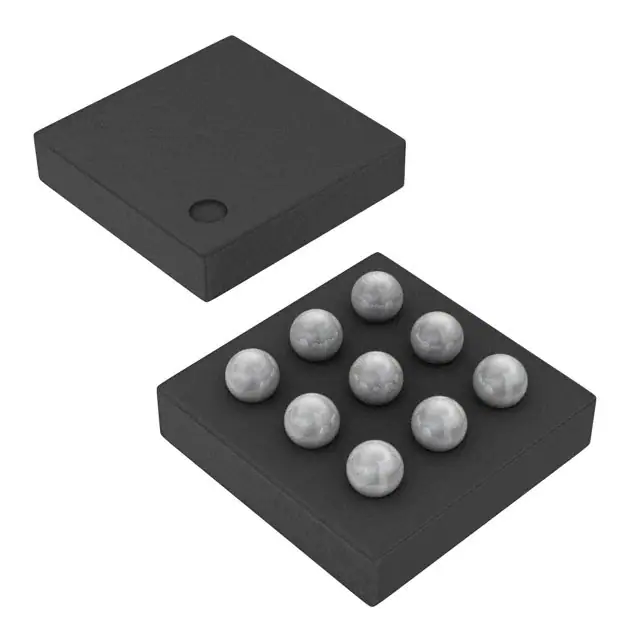

| Package / Case | 9-UFBGA, DSBGA | 9-UFBGA, DSBGA | 9-UFBGA, DSBGA | 9-UFBGA, DSBGA |
| Supplier Device Package | 9-DSBGA | 9-DSBGA | 9-DSBGA | 9-DSBGA |
